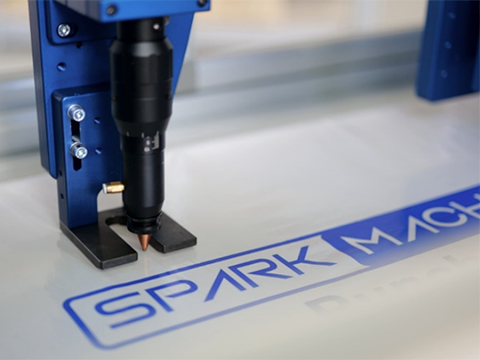

Camera-guided laser micro-perforation: efficiency and precision in industrial production

The preservation paradox: why traditional methods fail

For decades, Modified Atmosphere Packaging (MAP) has been the industry standard for balancing gas exchange between a product and its external environment. However, the success of this technique is intrinsically dependent on the pinpoint accuracy of film perforation.

Traditional mechanical micro-perforation in converting lines faces a significant "invisible" problem: tool wear and a lack of constant, real-time monitoring. Unlike the stability of modern laser systems, mechanical contact leads to serious inconsistencies due to component degradation or variations in plastic material. In many high-speed lines, film converters may produce micro-perforations at speeds exceeding 300 meters per minute without any camera detection, leading to unseen inconsistencies or even entirely missing holes. A single poorly executed hole or an incomplete perforation can invalidate an entire coil, compromising the final result and leading to massive material scrap.

Furthermore, standard pre-perforated films often offer only a "closest average" permeability. This is often insufficient because fresh produce is essentially "alive." Its respiration rate - the rate at which it consumes oxygen and releases CO2 - changes significantly through the seasons. Therefore, film permeability must be treated as a Quality Assurance Critical Control Point (QACCP).

Intelligent laser micro-perforation

Spark Machinery has redefined these industry standards by integrating advanced machine vision systems, transforming the laser perforation process into a smart, autonomous solution capable of self-diagnosis in real time. By moving away from the "average" approach, this technology allows professional processors to gain full control over the packaging film depending on the actual product respiration.

Ultra-high-speed scanning and diagnostics

The processing capacity of this system represents a milestone in conversion engineering. The equipment can perform image acquisition in as little as 1 microsecond, allowing up to 28 full analyses per second to be conducted without slowing down the production line. This high-speed performance allows the system to reach processing speeds of up to 400 m/min.

This frequency of analysis is the necessary foundation for a quality control system that goes far beyond simply detecting a hole. The vision software analyses accurate metrics at each individual hole to ensure structural integrity and exact permeability:

Free Area Calculation: The open surface area is accurately measured to ensure that the gaseous flow of oxygen, carbon dioxide, and ethanol is exactly as expected for the specific product.

Deviation from Theoretical Circumference: The system evaluates the distance between the actual hole and the theoretical designed diameter. If deformation is detected, the system autonomously modifies parameters to correct it.

Melting Ring Analysis: The percentage of the casting ring relative to the free zone is monitored to verify that the laser focus is optimal.

Overcoming the "Missing Point" and Invisible Barriers

To ensure absolute homogeneity over the entire length of a coil, Spark Machinery implemented laser source pre-excitation. To ensure that the first pulse is as accurate as the last, source pre-excitation technology has been implemented. This allows the system to maintain a constant minimum level of pre-excitation, maximising the source's efficiency and responsiveness. By keeping the gas inside the laser tube in a "quasi-ignition" state, the system provides an immediate response and superior energy stability from millisecond zero. This eliminates the "missing point" effect or weak perforations that often occur at the start of work cycles or after technical stops.

Perhaps most impressively, the vision system can recognize residual membranes - extremely thin layers of polymer that have not completely evaporated. These membranes, even when thinner than 1 micron, can act as partial barriers that drastically alter gas exchange. While the hole might appear open to the naked eye, the intelligent vision system identifies these failures and corrects them, ensuring the film fulfils its intended permeability function.

The science of EMAP and bioplastics

The ultimate goal of this precision is to achieve an Equilibrium Modified Atmosphere Packaging (EMAP) system. When the film's Oxygen Transmission Rate (OTR) is perfectly tuned to the product's respiration, the atmosphere inside the package reaches an equilibrium that significantly slows down the aging process of the produce.

Properly implemented EMAP can extend the shelf life of fresh produce by 1 to 5 days, depending on the product, providing a significant buffer for retailers and reducing food waste in the consumer's home.

The "brain" of the system: instant self-correction

The real competitive advantage of Spark Machinery lies in its ability to prevent error from becoming waste. When the system detects a slight deviation from set parameters, it does not stop the machine. Instead, the "Brain" of the system - the control interface - adjusts laser power, firing time, and focus in real time.

This instant feedback compensates for external variables such as:

• Minimal variations in material thickness.
• Changes in material blend or density.
• Ambient temperature fluctuations.

This ensures that 100% of the production meets the strictest technical specifications, a level of digital excellence that offers total traceability for large consumer brands.

Conclusion: profitability through sustainability

The implementation of smart laser micro-perforation offers tangible benefits that directly impact the bottom line. By eliminating the production of non-conforming material, converters significantly reduce scrap costs. Simultaneously, by optimising the shelf life of fresh produce - from strawberries and salads to meats - the technology contributes to a more sustainable global food chain.

Spark Machinery does not just offer machinery; it provides a guarantee of stability. By elevating laser micro-perforation to a new level of precision and autonomy, the company enables processors and converters to meet the packaging challenges of the future with non-negotiable quality.

Key technical summary:

• Capture speed: 1 us.
• Inspection frequency: 28 Hz.
• Processing speed: up to 400 mt/min.
• Control variables: Power, pulse time, and focus.
• Integration: Available as a stand-alone unit or custom-designed for existing lines.
