Compair highlights the importance of compressor energy efficiency

With the global rise in electricity prices, the energy costs of compressed air have increased to as much as 91% of the total cost of ownership, and operators need to urgently review the efficiency of their system says Graham Read, product manager for industrial compressors at Compair.

For many years, the industry has used a formula to calculate compressed air cost of ownership, comprising capital investment and installation at 10 per cent, maintenance at approximately 8 per cent and energy costs making up the largest proportion at 82 percent.

This breakdown has served many customers well, enabling them to make informed choices about how to lower running costs. This is especially the case when considering the cost of capital equipment and the potential payback that can be achieved by investing in an energy-efficient machine.

However, customers now need to re-evaluate the way that they assess their compressed air energy costs as Graham explains: “Total running costs over the last ten years for a 160-kW compressor have more than doubled. Put simply, for every 100,000 Euros spent on compressed air previously, around 82,000 Euros of this was the energy costs. Now, this figure has risen to 91,000 Euros – with energy costs doubling in the last two years alone.

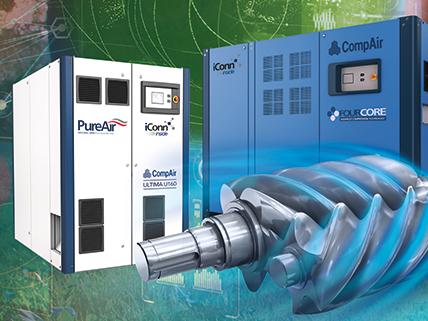

“The good news is there are numerous high-performing, energy-efficient compressors available on the market, which can help reduce a site’s reliance on electricity considerably, such as our new L160e-250e range.”

The FourCore range offers all the capabilities of an oil-lubricated two-stage compressor, but with only the footprint of a single-stage unit. This compact, two-stage airend uses four gears rather than three, to deliver flexible rotor speed adjustment at both low and high pressures, as well as the best possible performance at different discharge pressures and shaft speeds.

When compared with previous single-stage compressors in this size range from Compair, the new models are up to 8 per cent more efficient, offering a best-in-class oil-lubricated solution that can help significantly reduce energy costs.

Compared to a 160 kW single-stage machine, operating at 7.5 bar, the new technology can save up to 12,000 Euros a year, providing payback in as little as one year. This rises to cost savings in the region of 18-22,000 Euros compared to a single-stage 250 kW machine, and a return on investment of well under twelve months in many instances.

Heat recovery options

In addition, integrated heat recovery is offered as an option on the new range. As much as 94% of the energy required to power a compressor is converted to heat, requiring fans or water to help cool the compressor, at an additional cost.  Unless reclaimed, this heat is ultimately wasted to the atmosphere.

At the same time, most companies consume a lot of energy and money to generate hot process water, to preheat water for steam generation or to heat areas of the factory.

By recycling the heat generated from a compressor, businesses can re-purpose this energy to heat water, for space heating, or for application processes in other areas of the installation.

Based on a 160 kW compressor, which runs for 6,000 hours per annum, there is the potential to save over 145 kW of energy per hour – to offer payback in as little as four months.

Graham continues: “While not every site will have the available capital expenditure to invest in a new energy-efficient compressor, significant savings can still be made by adopting a ‘measure, manage and improve’ approach. Compair offers an air assessment service which looks at all aspects of a compressed air system’s performance, including power and flow data, pressure measurements, leak detection and heat recovery to name a few.

“Using data logging, precise measurements are taken to give a comprehensive overview of energy performance. Suggestions can then be made on potential equipment upgrade or investment, through to simple equipment optimisations and low-cost elements, such as fixing leaks, reducing pressures and switching off compressors when they are not in use.

“The industry is becoming increasingly concerned about the substantial increase in electricity prices, and many customers are talking to us about how they can future-proof their compressed air installation to help mitigate for further price increases. By understanding how the cost of ownership balance has shifted, and adopting a system-based approach, it is clear that customers can achieve rapid payback on any investment made.”

Compair

Claybrook Drive
Washford Ind Est
Redditch
B98 0DS
UNITED KINGDOM

01527 838494
