Enclosure manufacturer Spelsberg has added to its compact range of junction boxes for indoor use
Designed for quick installation by electrical contractors, the Spelsberg Red Range now includes new variants of the easy to access IP20 Q enclosure, as well as smaller sizes in the IP55 2K enclosure. Red Range enclosures are said to be fast mounting with cable routing as a result of their flexible pipe in-leads. In the two-component versions, the junction boxes have self-sealing, soft insertion diaphragms for tool-free assembly. Installation is also stated to be easier thanks to compact dimensions, and the narrow design variants are said to be well suited for splitting and connecting where required.
The new Q-Mini-L junction box features a narrow rectangular form and is a compact 43mm in length and 89mm in width. The IP20 enclosure is designed for ease and speed of mounting and cable entry, with eight insertion points, six of which are accessible from above and two from the floor. The Q-Mini-L also includes external mounting lugs. The enclosure design retains resilience and achieves strain relief in accordance to DIN VDE 0606 as well as impact resistance to IK07. The Q-Mini joins the existing range of Q12 junction boxes, which are 85mm x 85mm.
The range of 2K enclosures, which extend to IP55, also now includes mini junction boxes in narrow form at 43mm in length and 89mm in width. Designed for swift installation, 2K-Mini junction boxes feature 10 insertions, including a floor insertion. For ease of access, the insertions expand up to 14mm in the sides and 10mm in the top and bottom. The 2K enclosures also include self-sealing membranes covering all 10 insertions, with no alignment or manual insertion required, saving time in installation and increasing protection.
The enclosure is designed in accordance with DIN EN 60670 (VDE 0606) and also achieves IK07 impact resistance. In addition to the new 2K-Mini junction boxes, the 2K range also includes the 85mm x 85mm 2K-12, featuring 12 entry points, and the 130mm width x 85mm 2K-16, with 16 insertions.

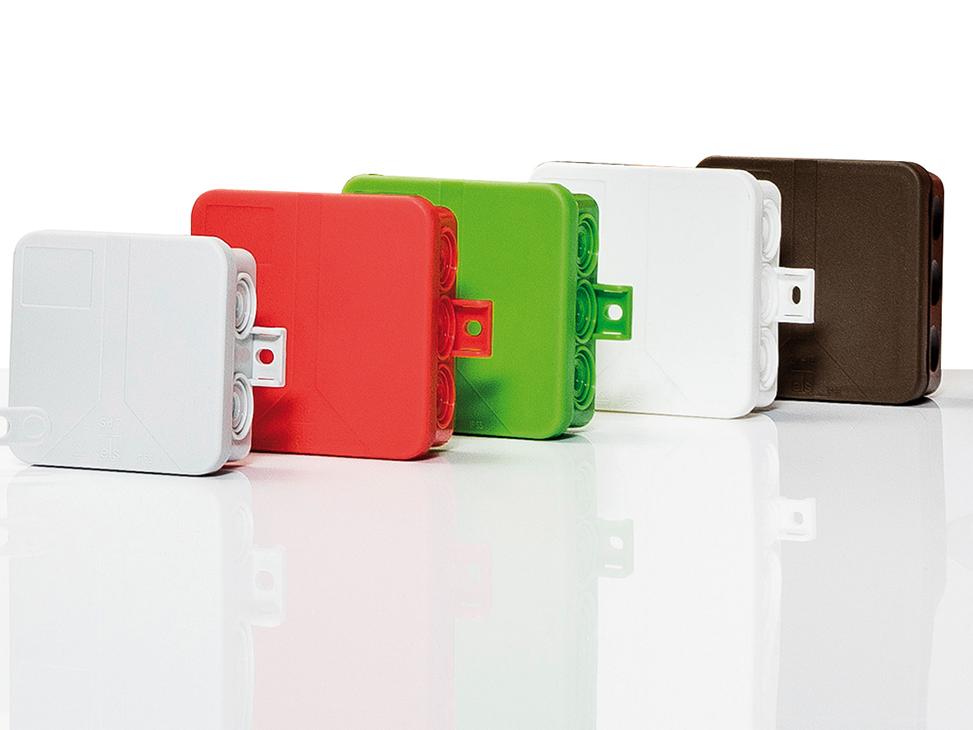

The enclosures are available in a range of colours including white, black, red, green and brown, which can be used to code specific circuits or to blend in with surrounding architecture. The Red Range can also be mounted on flammable surfaces if required.
