New bearings ensure precise, easy linear movements

iglidur W360 high-performance plastic ideal for microscopes and X-ray machines

The new iglidur W360CM series linear bearings from igus are designed to slide on round shafts with high precision. The linear bearing consists of an aluminium housing and a polymer liner, which ensures high accuracy, says the company. The design allows precise movement.

By using iglidur W360 high-performance polymers, no external lubrication is needed. The dimensions of the new bearings are interchangeable with metallic linear ball bearings, so that they can be easily converted to a 1:1 ratio, providing the correct technical considerations are observed.

Maximum precision and reliability

Linear bearings are used everywhere where goods or objects are moved from A to B, or in adjusting devices or machines. An important reason why motion plastics specialist igus developed the W360CM linear bearings series is that high precision motion is a key requirement in, for example, microscopes and X-ray machines. These bearings ensure maximum precision and reliability on drylin R-series round shaft guides.

The long-lasting sliding elements of the bearing are characterised by a thin wall and high strength. They are manufactured using injection moulding from the high-performance polymer, iglidur W360. The bearing can operate in a temperature range between 0ºC-50ºC. Due to the thinner wall design, higher material strength and reduced elasticity, the linear bearings ensure a low operating bearing clearance. These new bearings, like all igus plain bearings and linear bearings, are free of lubrication and thus free from contamination and maintenance.

New polymers pass the test

W360CM linear bearings can be easily mounted in all drylin housings, says igus, as well as in all standard designs for linear ball bushings. For example, ball-based solutions can be converted 1:1 with the maintenance-free solution without the design wall. The construction of the new linear bearings is simple: the sliding inserts are pressed into the housing until a pre-tensioned snap hook fits into a groove, so the liners are secured and do not come free even under high loads and temperatures.

The new drylin R-series was also convincing in tests at igus’s 3,800 sq m laboratory in Cologne, Germany. Using mandrel measurements to check the bearing clearance and precision, it was shown that the bearings of the W360CM series perform much better than coated linear bearings.

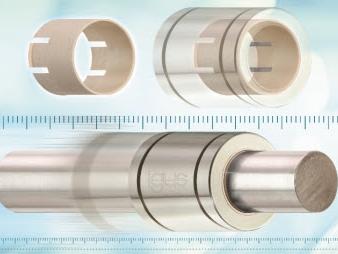

Bearings made of iglidur W360 high-performance plastic ensure maximum precision and stiffness on round shafts.
Bearings made of iglidur W360 high-performance plastic ensure maximum precision and stiffness on round shafts.

igus (UK) Ltd

51A Caswell Road
Brackmills
Northampton
NN4 7PW
UNITED KINGDOM

+44 (0)1604 677240

sales@igus.co.uk

www.igus.co.uk
